Electric rope access system with high safety and precise control, suitable for work at great heights as well as rescue and firefighting operations.
Currency

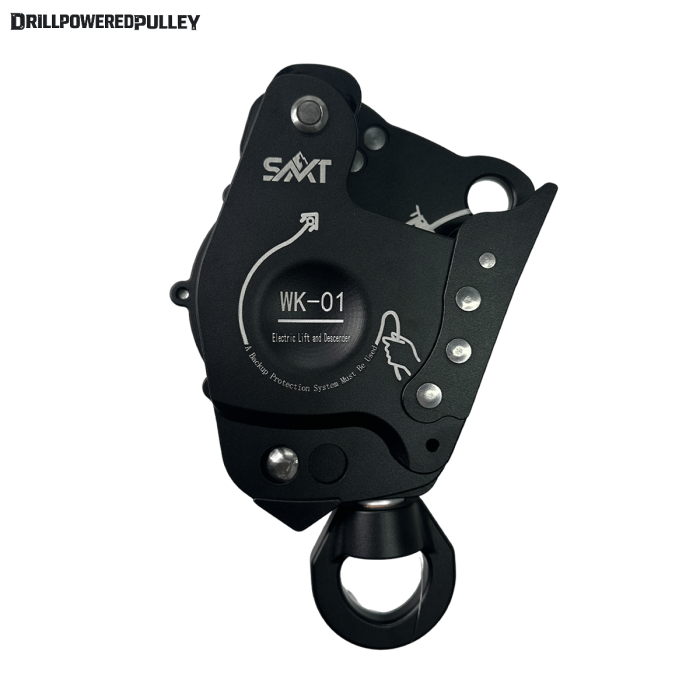

WK-01 Drill powered pulley for Working at Heights, Firefighting & Rescue Operations, Climbing Rope Device
Features
High Safety
Equipped with multiple safety mechanisms, including overload protection and fall arrest, the device ensures rapid and reliable braking in emergencies. The special gear design effectively prevents slippage or jamming, guaranteeing maximum safety for both the operator and the equipment.
High Adaptability
Suitable for ropes of varying diameters, the device enables stable and reliable operation under diverse working conditions and in different environments.
Easy and Convenient Operation
Compared to conventional manual ascenders, the electric control allows for significantly easier handling. This reduces operator physical strain and considerably increases work efficiency, especially during frequent lifting and lowering at height.
Precise Control
The lifting speed and position can be precisely controlled, making the device ideal for tasks requiring high accuracy, such as the precise installation and positioning of outdoor air conditioning units.
Specification
Product Model: WK-01
Product Type: Drill Powered Pulley (Electric Drill Driven Ascender for Working at Heights)
Material: Aluminum Alloy
Screw Material: Stainless Steel
Workload Capacity: 10 – 220 kg
Speed: 0.5 m/s (285 kg) up to 2.0 m/s (30 kg)
Lifting Height: 50 m (285 kg) up to 200 m (30 kg)
Applicable Rope Diameter: 9.5 – 11 mm (12 mm customizable rope pulley available)
Required Electric Drill Torque: 120 – 160 N·m (without impact function)
Fall Resistance Height: 1 m
Waterproof Rating: IP66
Product Weight: 2.5 kg
Implementing Standard: XF 494-2023
Core Functions: Connects with a handheld drill to provide increased power; equipped with manual lowering function; suitable for efficiently lifting goods or personnel
Accessories: Equipped with a satchel box (Size: 31 × 27.5 × 16 cm; Weight: 4.3 kg)
Packing List
1 × WK-01 Drill Powered Pulley
1 × Carrying Case
2 × Hex Keys
2 × Hex Adapters
1 × Screw
1 × Lubricating Oil Syringe
1 × Carabiner
